Thicker Walls
Increased wall thickness through the elbow provides more material in the high-stress flow path.
GEN II HIGH-TEMPERATURE REPLACEMENT
Coolant Sleeve Elbow
A completely redesigned, direct-fit aftermarket replacement for Harley-Davidson Street models using OEM part number 26900076.
Documented vehicle compatibility2014-2020 Street 500 XG500 • 2014-2020 Street 750 XG750 • 2017-2020 Street Rod XG750A
Prefer immediate checkout? View the current eBay listing →
Compare your original component and verify the motorcycle model, year, and OEM part number before ordering.

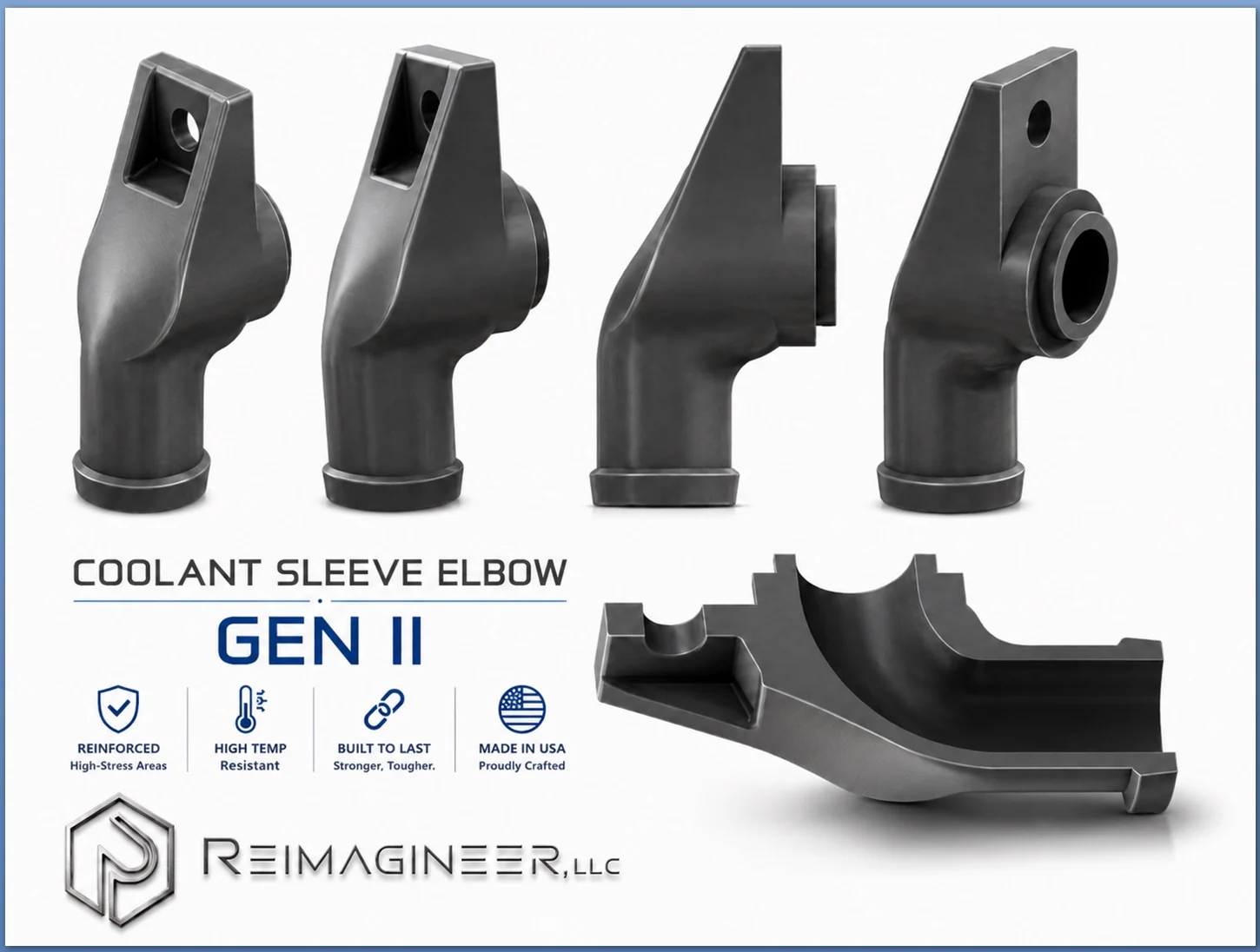

GEN II product views showing the reinforced mounting structure, cylindrical sealing flange, thicker wall sections, and internal coolant passage.
REINFORCED. RELIABLE. REIMAGINED.

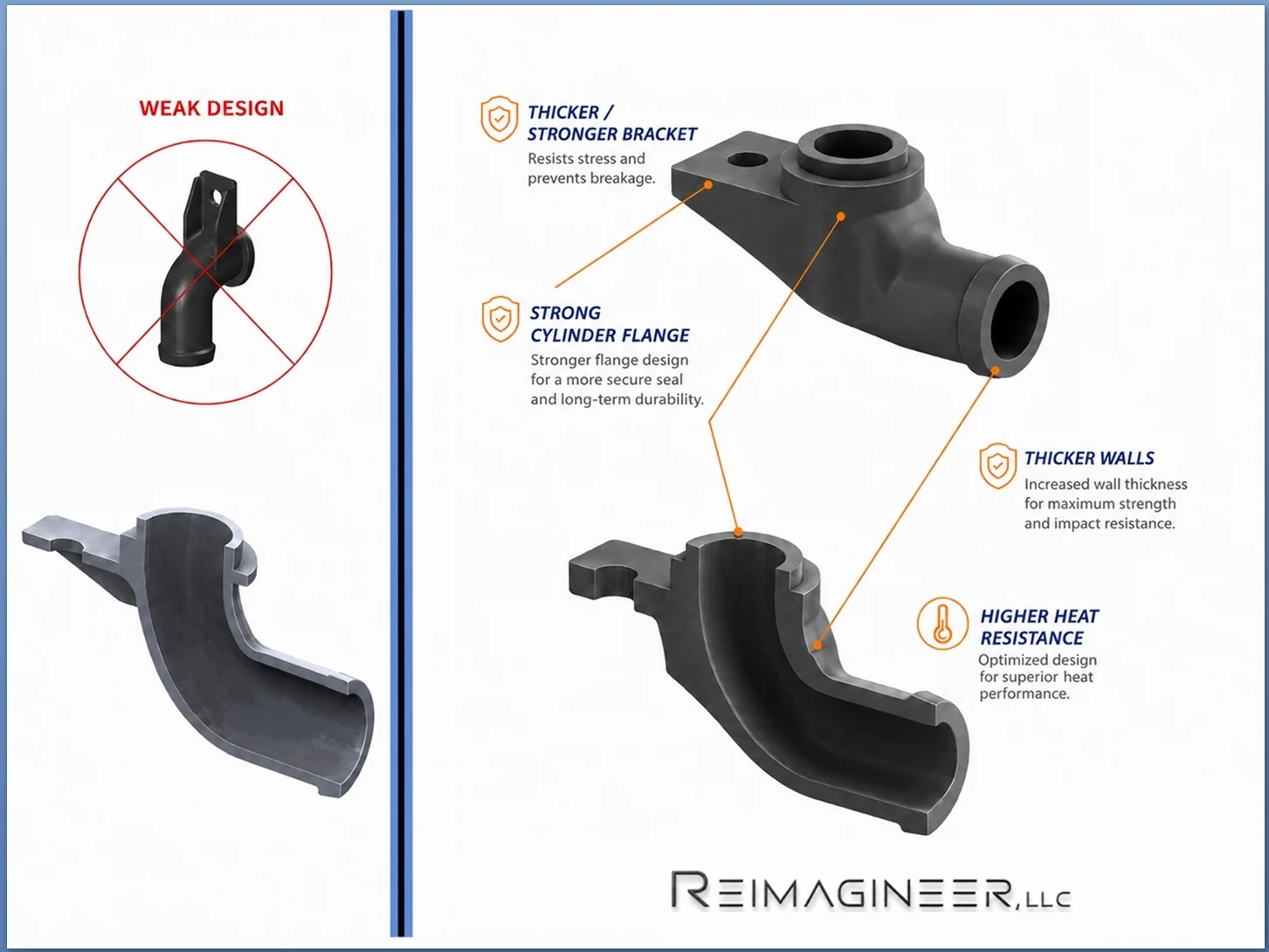

Strength added where the original geometry is most vulnerable
GEN II was reworked around the mounting bracket, cylindrical sealing flange, elbow transition, and wall thickness while retaining the original installation layout.
Reinforced Transition
Smoother internal and external transitions distribute mechanical stress more effectively through the bend.
Stronger Mounting Bracket
A substantially reinforced mounting structure improves support around the single-fastener interface.
Robust Sealing Flange
The cylindrical engine-side flange is strengthened for a secure O-ring interface and long-term durability.

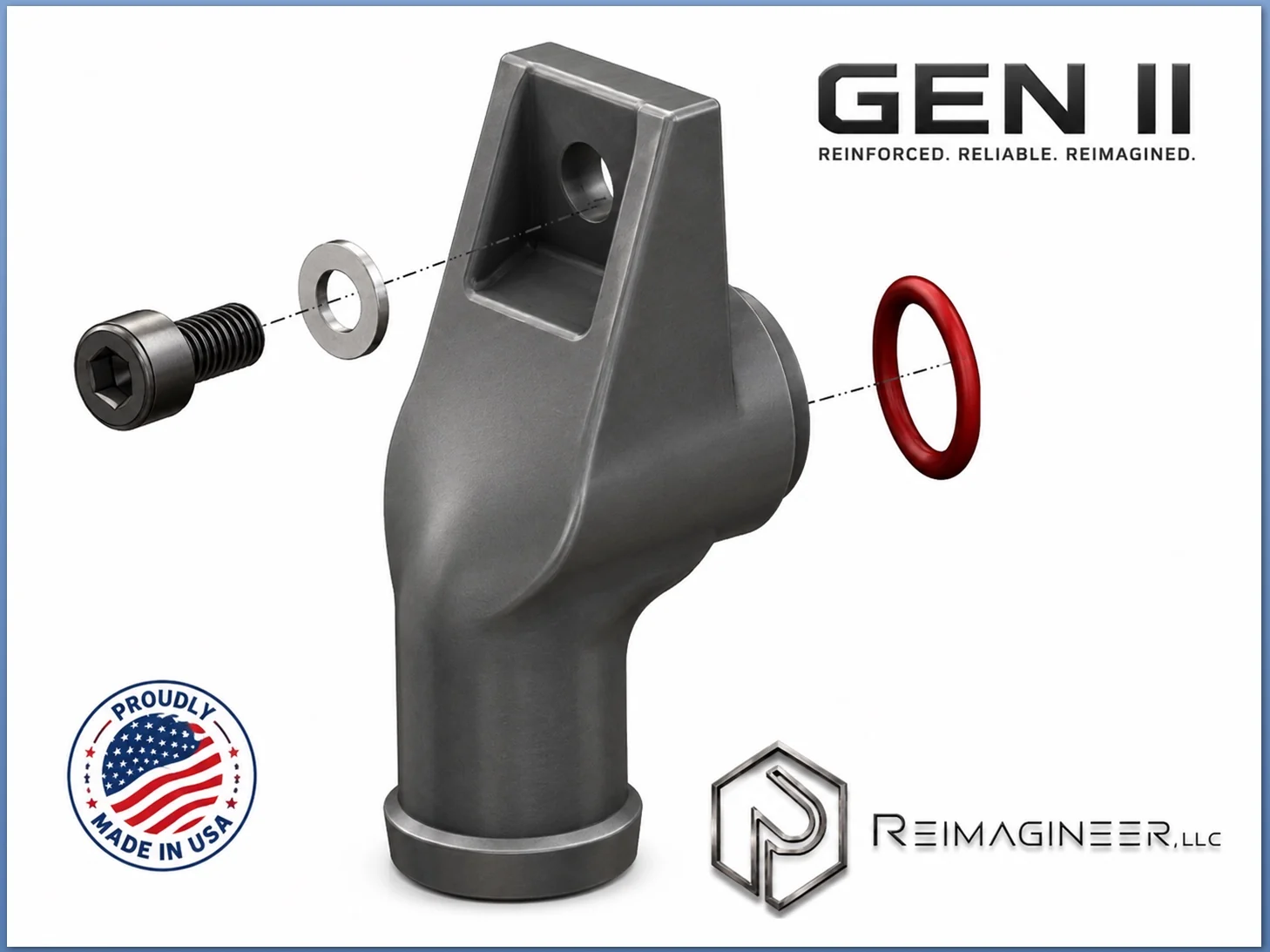

COMPLETE GEN II KIT
Everything needed for the replacement component
- Qty. 1 GEN II high-temperature coolant sleeve elbow
- Qty. 1 Class 12.9 socket-head fastener
- Qty. 1 flat washer
- Qty. 1 high-temperature O-ring seal
- Installation instructions
The supplied Class 12.9 fastener is pre-coated with blue thread-locking compound to help resist loosening during normal motorcycle operation.
Important: This is a cooling-system component. Work only on a completely cool, depressurized engine. Correct O-ring seating, fastener practice, hose routing, clamp placement, coolant refill, air bleeding, leak inspection, and post-installation monitoring are essential.
GEN II DESIGN
Purpose-built rather than simply copied
The revised geometry concentrates reinforcement around the areas most exposed to mounting load, vibration, hose-clamp pressure, heat cycling, and impact.
INSTALLED LOCATION
Direct-fit geometry at the original cylinder connection

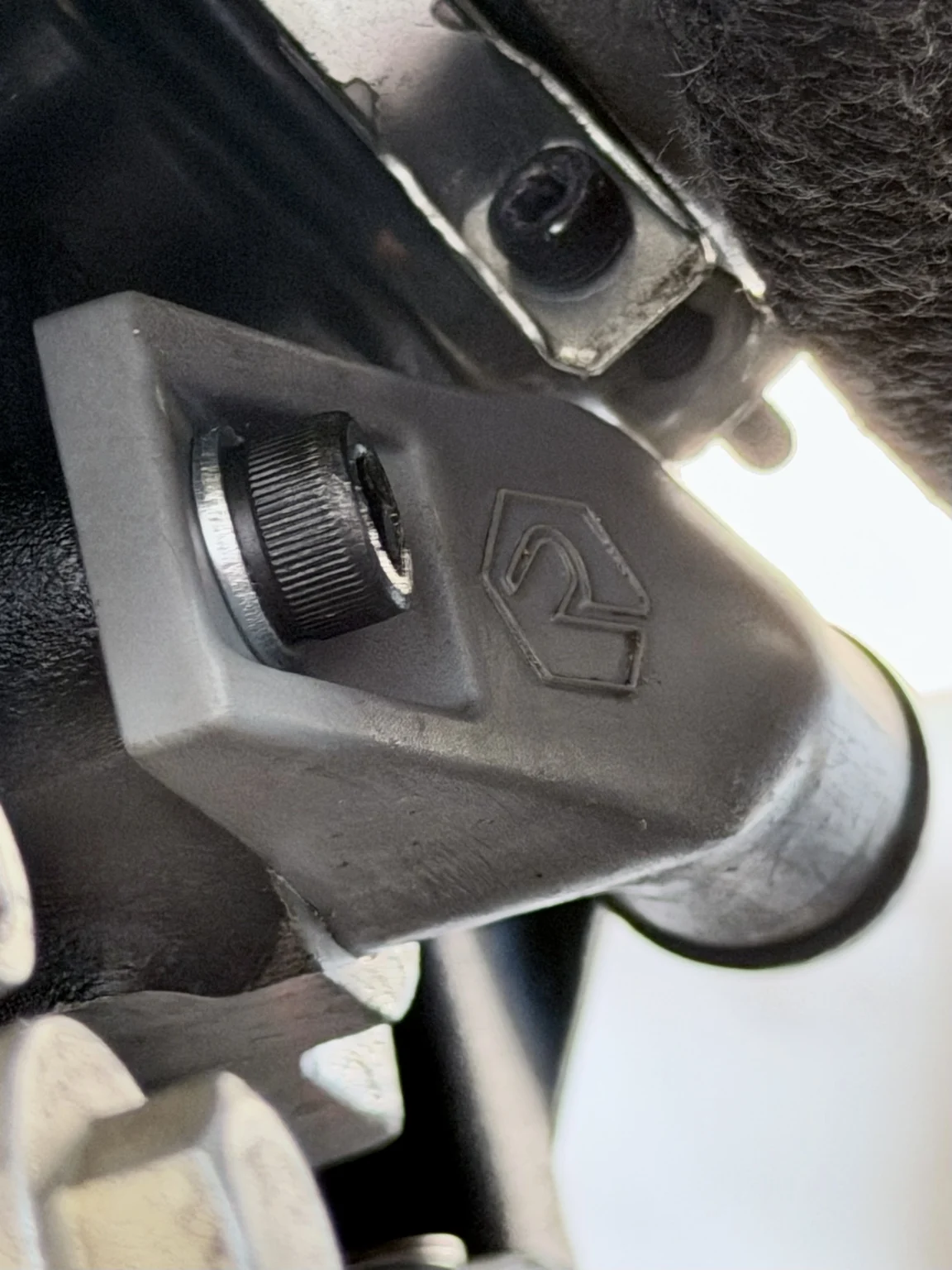

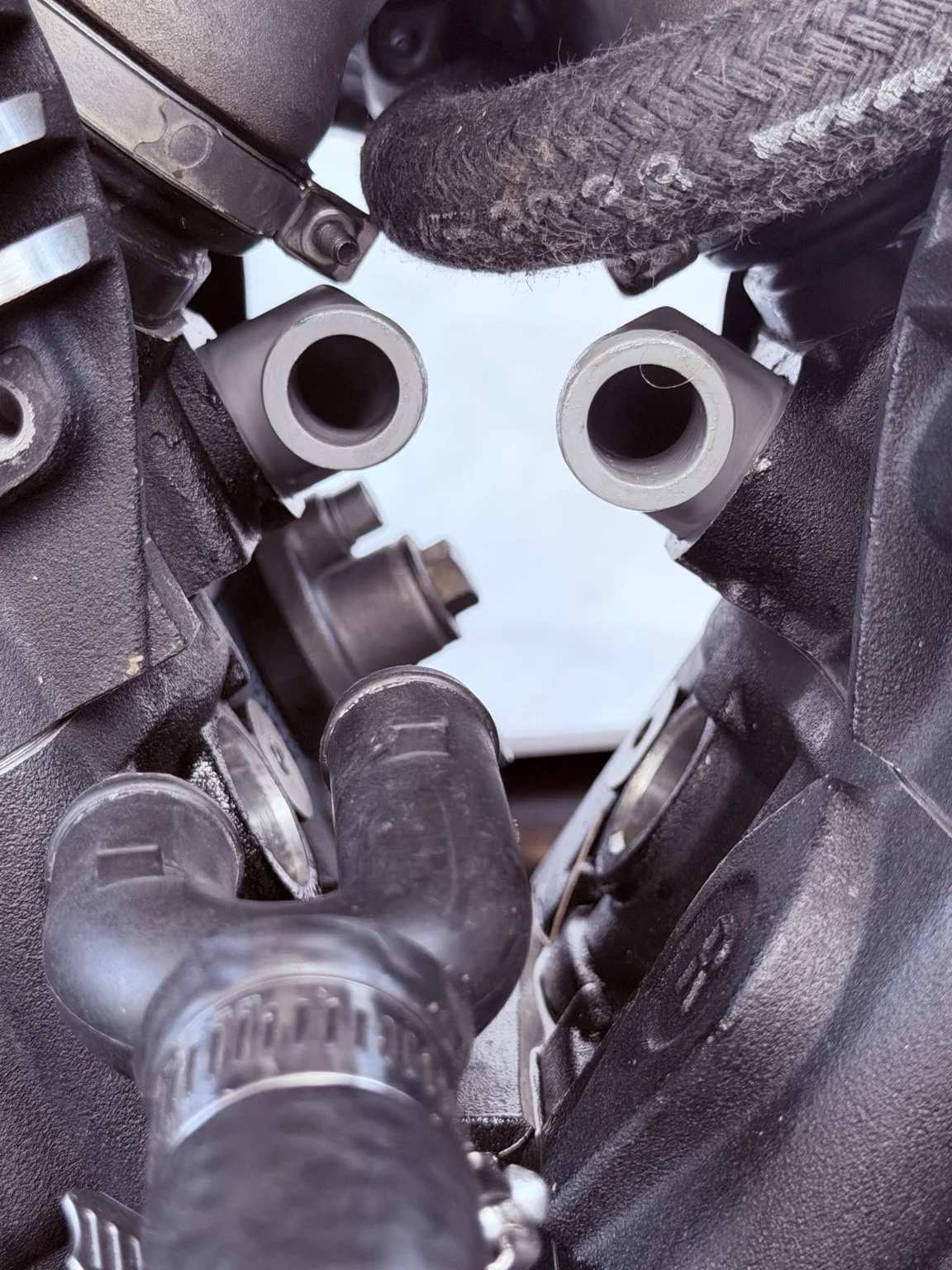

These photos show the elbow installed in the original engine location and the relationship between the two coolant connections.
INSTALLATION GUIDE
Detailed illustrated guide coming soon
The completed PDF will cover preparation, component removal, mating-surface inspection, O-ring placement, installation sequence, fastener guidance, coolant refill, air bleeding, leak checks, and inspection after the first complete heat cycle.
▶Installation VideoA YouTube walkthrough will be embedded here after publication.
The video section is ready for the final link and will not require redesigning this page.
ORDER OPTIONS
Choose direct fitment review or immediate eBay checkout
The direct website checkout currently submits an order request. Reimagineer, LLC will verify fitment, current availability, direct price, shipping, and payment instructions before the order becomes binding.
- No payment is collected by the website form yet
- Vehicle compatibility is reviewed before direct payment
- Shipping and applicable tax are confirmed separately
- The active eBay listing is available for immediate online checkout
COMMON QUESTIONS
What buyers should know
Is this an OEM Harley-Davidson part?
No. It is a newly manufactured aftermarket replacement independently designed and produced by Reimagineer, LLC.
Which motorcycles are supported?
Documented compatibility includes 2014-2020 Street 500 XG500, 2014-2020 Street 750 XG750, and 2017-2020 Street Rod XG750A models using OEM part number 26900076.
What comes with the kit?
The kit includes the GEN II elbow, a Class 12.9 socket-head fastener with pre-applied blue thread-locking compound, a flat washer, a high-temperature O-ring, and installation instructions.
Is professional installation required?
Professional installation is recommended for anyone unfamiliar with motorcycle cooling-system service, coolant refill, system bleeding, or post-installation leak inspection.
DIRECT PRODUCT PAGE
Scan directly to the GEN II product page
This QR opens the product page at the top. The installation guide button remains available near the top of the page.
Download high-resolution QR code →
